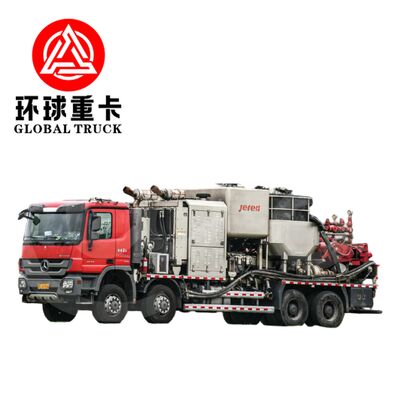

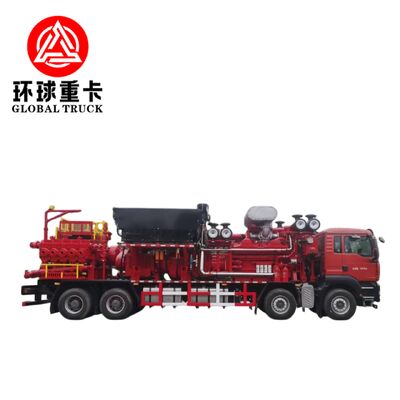

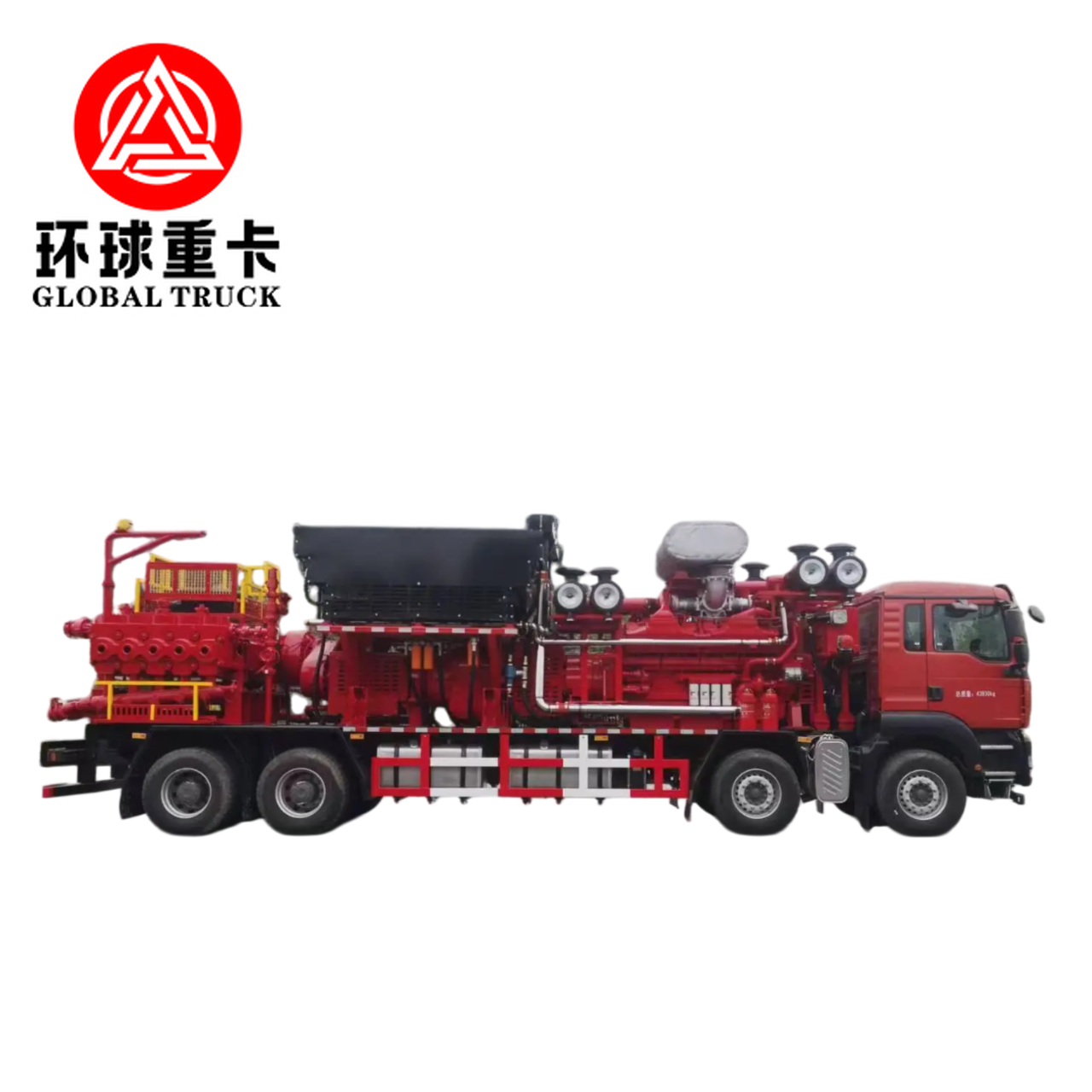

8×6 Drive Wheel Oilfield Fracturing Truck with 1697L/Min Maximum Plunger Pump Displacement and Euro 6 Emission Standard

8×6 Drive Wheel Oilfield Fracturing Truck with 1697L/Min Maximum Plunger Pump Displacement and Euro 6 Emission Standard

  • 8×6 Drive Wheel Oilfield Fracturing Truck with 1697L/Min Maximum Plunger Pump Displacement and Euro 6 Emission Standard
  • 8×6 Drive Wheel Oilfield Fracturing Truck with 1697L/Min Maximum Plunger Pump Displacement and Euro 6 Emission Standard
  • 8×6 Drive Wheel Oilfield Fracturing Truck with 1697L/Min Maximum Plunger Pump Displacement and Euro 6 Emission Standard
  • 8×6 Drive Wheel Oilfield Fracturing Truck with 1697L/Min Maximum Plunger Pump Displacement and Euro 6 Emission Standard
8×6 Drive Wheel Oilfield Fracturing Truck with 1697L/Min Maximum Plunger Pump Displacement and Euro 6 Emission Standard
Detail produk:
Tempat asal: Cina
Nama merek: DONGFENG
Sertifikasi: CE
Nomor model: Truk Rekahan Minyak
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 buah
Harga: Dapat dinegosiasikan
Kemasan rincian: Telanjang
Waktu pengiriman: 35 hari kerja
Syarat-syarat pembayaran: L/C,T/T
Menyediakan kemampuan: 50 BUAH / Bulan
Kontak
Detil Deskripsi produk
Model TIDAK.: XYLC2500 Roda penggerak: 8×6
daya kuda: ＞ 450hp Kekuatan: solar
Desain Ban: tanpa ban dalam Standar Emisi: Euro 2
Penularan: Transmisi 7601c Perpindahan Pompa Plunger Maksimum: 1697L/menit
Menyoroti:

8×6 Drive Wheel Fracturing Blender Truck

,

1697L/Min Maximum Plunger Pump Displacement Oilfield Fracturing Truck

,

Euro 6 Emission Standard Fracturing Mortar Tank Truck

New Trend Oilfield Equipment 130 Barrel Fracturing Blender Truck
Shacman 8×6 Oilfield Fracturing Mortar Tank Truck
Heavy-duty diesel vehicle engineered for high-pressure fracturing, cementing, and slurry pumping operations in unconventional oil and gas reservoirs. With reinforced 8×6 off-road chassis, Euro 6 diesel engine, and PTO-driven hydraulic pump system, this truck delivers precise control, high payload, and reliable operation in harsh field conditions.
Chassis & Drive System
  • Drive Type: 8×6 heavy-duty oilfield chassis
  • Engine: 460-500 HP Euro 6 diesel
  • Transmission: Manual 10-speed gearbox
  • PTO: Engine-mounted power take-off for high-pressure pumping
  • Axles: Reinforced off-road oilfield-grade
  • Suspension: Heavy-duty leaf spring with optional shock absorbers
  • Tires: Oilfield radial off-road
  • Maximum Speed: 70-75 km/h
  • Operating Terrain: Desert, plateau, mountainous, muddy oilfield roads

The 8×6 configuration provides superior stability, traction, and load-bearing capacity for oilfield operations.

Mortar Tank & Fluid System
  • Tank Capacity: 12-20 m³, customizable
  • Tank Material: Carbon steel with corrosion-resistant epoxy lining
  • Tank Type: Cylindrical or rectangular with anti-surge baffles
  • Agitator: Diesel or hydraulic-powered for uniform slurry mixing
  • Pump: PTO-driven high-pressure hydraulic pump
  • Maximum Flow: Adjustable for fracturing or cementing requirements
  • Discharge Valves: Pneumatic or hydraulic, bottom and side
  • Safety Access: Anti-slip ladder, sealed manhole, emergency vent
Key Operational Features
  • Precise high-pressure slurry delivery for fracturing and cementing
  • Diesel engine allows independent operation without external power
  • Manual transmission provides control on uneven terrain
  • Reinforced 8×6 chassis ensures stability with full payload
  • Euro 6 engine meets international emission standards
Safety Features
  • Emergency stop switches (inside and outside cabin)
  • Overpressure relief valves
  • Hydraulic overload protection
  • Anti-overflow system
  • Grounding and bonding for static prevention
  • Fire suppression equipment
Typical Applications
  • Hydraulic fracturing in unconventional reservoirs (shale, tight oil)
  • Cementing and plugging operations
  • Injection of sand or chemical slurries
  • Multi-stage horizontal and vertical well stimulation
  • Oilfield infrastructure and maintenance projects
Optional Upgrades
  • Remote monitoring and intelligent control system
  • Data acquisition and recording module
  • Low-temperature winterization kit
  • Desert/high-temperature adaptation package
  • Stainless steel piping for aggressive fluids
  • Noise-reduction and cabin comfort improvements
  • Multi-compartment tank for simultaneous fluid handling
Frequently Asked Questions
What types of fluids can this truck handle?
Designed for fracturing fluids, cement slurry, sand, and chemical slurries.
Can it operate in extreme climates?
Yes, with optional winterization or desert adaptation packages.
How is slurry delivered to wells?
Via a PTO-driven high-pressure hydraulic pump with adjustable flow.
Can the tank be customized?
Yes, capacity, material, and compartmental layout are adjustable.
Why choose the 8×6 configuration?
It provides enhanced stability, load-bearing capacity, and off-road mobility for oilfield environments.
Shacman 8×6 Oilfield Fracturing Mortar Tank Truck in operational environment
